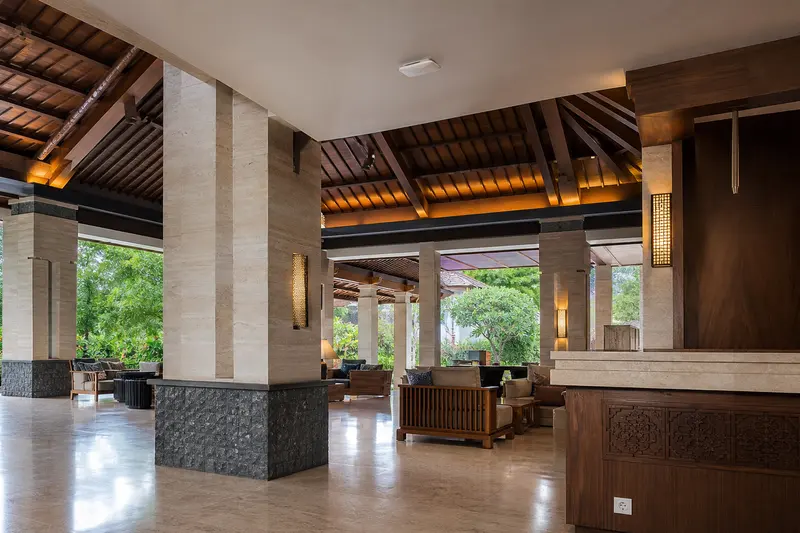

Resort lobby with a discreet access point among stone columns and varied open zones.
Concept illustration: Resort lobby with a discreet access point among stone columns and varied open zones.
Hospitality Automation

Hotel Wi-Fi planned for occupied rooms

Hotel Wi-Fi needs to work where guests sit, sleep and take calls, not just outside the lift. We plan coverage and capacity around the property, with staff and guest access treated separately. Occupied-room use is the useful test.

Quick answer

What does hotel networking and Wi-Fi cover?

Hotel Wi-Fi network design must cover guestrooms and shared spaces while carrying busy, uneven demand. It separates guest, staff and operational systems, places access points from survey evidence and plans wired uplinks, switching and internet capacity. A strong room signal is necessary, but it does not cure an undersized uplink or an ISP outage.

Project management consultancy (PMC)

What should hotel networking PMC include?

Hotel Wi-Fi PMC can coordinate access-point placement with room interiors and live operations. A corridor drawing alone does not prove guest-room performance.

Prioritise guestrooms and busy public spaces. An upgrade can be phased if the cabling and operating plan support it.

  1. Define guest and staff needs

    Map priority areas and the systems that need separated network access.

  2. Coordinate the installation

    Review cabling and access-point locations with interiors and the hotel operating team.

  3. Test representative rooms

    Check agreed coverage and access under defined conditions; hand over configuration and support responsibilities.

Internet-provider availability and every guest device are outside a Wi-Fi design guarantee. Any PMS connection needs explicit approval.

Discuss the scope with us

Understand

Learn before you shortlist

Read the architecture, limits and failure behaviour before comparing products or platforms.

Learn the hotel networking and wi-fi basics

How to think about it

Hotels are radio puzzles with moving walls: closed fire doors, mirrors, bathrooms and crowded ballrooms change the path. Corridor-only access points may look economical on a drawing and disappoint inside rooms. We test representative room types and the places where people gather, then adjust against measurements.

What should we decide before ordering?

What is a hotel system expected to protect?

Hotel networking and Wi-Fi applies this principle to guest and staff clients, room and venue access points and segmented hotel switching. Guest comfort, staff response, room turnaround, public events and security continue while equipment is serviced. The brief therefore describes an ordinary day and the awkward ones: early arrivals, room moves, lost credentials, a banquet change, an internet outage and a controller replacement. The delivery timeline surveys guest and staff clients before design approval, then tests segmented hotel switching during commissioning. For this service, the scope records how gateway and captive service connects to iSP circuits, then verifies that relationship during commissioning or recovery testing.

Hotel networking and Wi-Fi applies this principle to hotel LAN and Wi-Fi, failover configuration and guest support policy. Hotel management retains responsibility for guest service, privacy notices, staff authorization, emergency procedures, music licensing, incident response and legal compliance unless the agreement says otherwise. The property management system vendor, ISP, electrical contractor and fire consultant also keep their own boundaries. For this service, the scope records how iSP upstream service connects to hotel LAN and Wi-Fi, then verifies that relationship during commissioning or recovery testing.

How do rooms, staff tools and shared spaces connect?

Hotel networking and Wi-Fi applies this principle to room construction, guest density and ballroom layout. Guest internet, staff devices, locks, room controllers, cameras, point-of-sale terminals and AV control should not share an unrestricted network. Interfaces to the property management system or building systems are checked against the supported method, credentials, event timing and failure behaviour. For this service, the scope records how operations traffic connects to carrier diversity, then verifies that relationship during commissioning or recovery testing.

Hotel networking and Wi-Fi applies this principle to guest connectivity fault, test room radio and test hotel LAN. Labels, consistent scene names, sensible defaults and local overrides matter more at 2 a.m. than an elaborate dashboard. We record who can change schedules, audio levels, access rights and temperature limits. For this service, the scope records how fail over if fitted connects to escalate ISP fault, then verifies that relationship during commissioning or recovery testing.

What does handover include?

Hotel networking and Wi-Fi applies this principle to representative rooms, lobby and restaurant and ballroom load. A room test covers arrival state, bedside control, do-not-disturb and make-up-room signals, HVAC response, curtain travel and recovery after power loss where those items are in scope. Network tests cover representative rooms and busy shared areas. Access tests cover issue, use, expiry, audit and emergency handling. Maintenance repeats the representative rooms and lobby and restaurant checks after material changes, updates or reported faults. For this service, the scope records how guest isolation connects to internet-failure drill, then verifies that relationship during commissioning or recovery testing.

Hotel networking and Wi-Fi applies this principle to hotel LAN and Wi-Fi, failover configuration and guest support policy. Hotel staff need short operating procedures and a route for faults that separates a local device issue from an ISP, PMS or utility problem. Ongoing monitoring is supplied only when contracted. A lower-complexity alternative remains valid when iSP upstream service can be handled by the documented manual or existing-system route. For this service, the scope records how iSP upstream service connects to hotel LAN and Wi-Fi, then verifies that relationship during commissioning or recovery testing.

What does the work involve?

How are guest coverage and capacity tested?

Predictive design starts the plan; on-site survey and post-install validation check it. Tests cover representative rooms, lobbies, restaurants, meeting areas and back-of-house work zones. Capacity considers simultaneous clients and application mix. Roaming depends partly on client behaviour, so acceptance uses supported devices and agreed observations rather than an absolute handoff promise.

What belongs to the hotel, integrator and ISP?

SmartR Spaces configures and tests the contracted LAN, Wi-Fi and failover. The ISP owns service beyond its demarcation and restoration of upstream faults. Hotel management owns guest terms, lawful access records and help-desk response unless managed operations are contracted. A second circuit reduces selected risks only when routes and providers are suitably independent.

What determines hotel Wi-Fi cost?

Guest density changes the design. Cost follows room and public-area construction, access points, cabling, PoE switching, internet capacity, segmentation, captive services, monitoring and representative occupied-area testing.

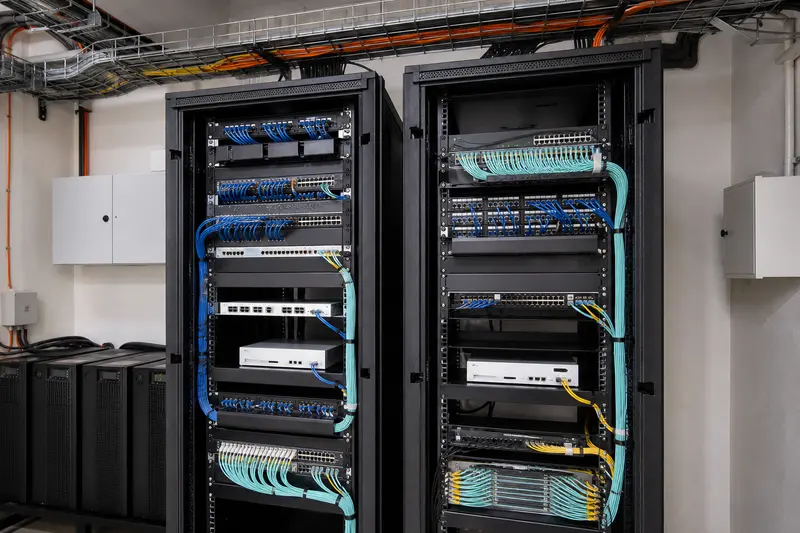

Two hotel network racks with separated patch zones, uplinks, gateways and containment.
Concept illustration: Two hotel network racks with separated patch zones, uplinks, gateways and containment.

How the system works

Hotel networking and Wi-Fi: system architecture map: Guest and staff clients, Room and venue access points, Segmented hotel switching, Gateway and captive service, ISP circuits
How hotel networking and wi-fi connects real inputs, infrastructure, controls and outcomes.
Hotel networking and Wi-Fi: responsibility boundary: Hotel LAN and Wi-Fi, Failover configuration, Guest support policy, ISP upstream service
What SmartR Spaces configures, what the customer operates, and which outside dependencies remain separate.
Hotel networking and Wi-Fi: fault and recovery path: Guest connectivity fault, Test room radio, Test hotel LAN, Fail over if fitted, Escalate ISP fault
The diagnostic branch and manual fallback used when the normal service path is unavailable.
Hotel networking and Wi-Fi: commissioning evidence loop: Representative rooms, Lobby and restaurant, Ballroom load, Guest isolation, Internet-failure drill
The witnessed checks and handover evidence used to accept the installed service.

Comparison and decision tables

Hotel networking and Wi-Fi: practical decision guide
Option or situationUseful whenDecision to record
In-room access pointsDense construction and predictable room coverageCabling and room-type validation
Corridor access pointsOpen layouts proven by surveyDoor and bathroom attenuation
Ballroom high densityMany simultaneous event clientsTemporary layouts and peak load
Guest and operations segmentationProtect hotel systems from visitor trafficCaptive portal and support ownership

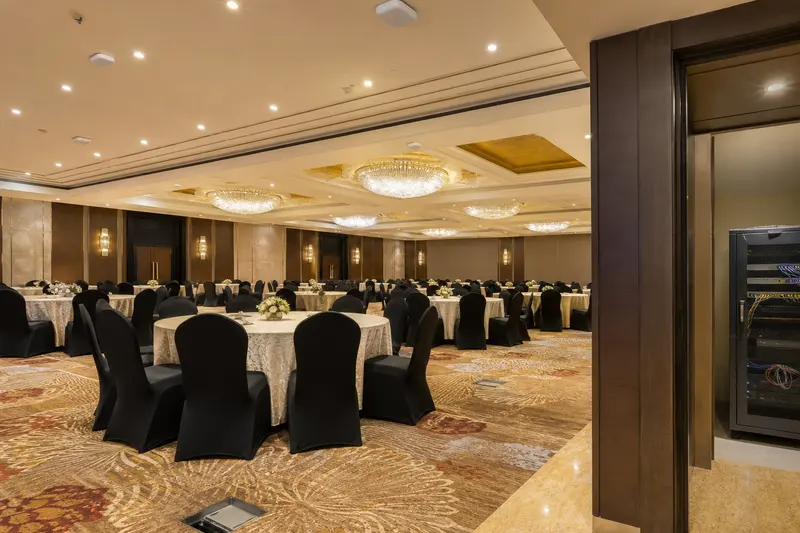

Empty ballroom with distributed ceiling Wi-Fi, floor boxes and adjacent service rack.
Concept illustration: Empty ballroom with distributed ceiling Wi-Fi, floor boxes and adjacent service rack.

Evaluate

Turn requirements into a plan

Bring users, rooms, current systems, data boundaries and acceptable downtime into one written requirements conversation.
