Auditorium AV has to work for the person at the back as well as the operator. We plan sound and display systems around the seating and the events you host. A lecture hall and a performance venue should not share an unexamined equipment list.
Quick answer
Commercial theatre and auditorium AV combines displays or projection, microphones, processing, amplification, loudspeakers, control and often network transport. Design targets include sightlines, image size, speech intelligibility, coverage and operator workflow. Those targets should be verified after installation.
Project management consultancy (PMC)
Auditorium AV project management consultancy can connect the acoustic, architectural and production requirements. Operators should be involved before the control layout is fixed.
Start with the event types the venue must handle reliably. Add specialist production equipment when there is a real operating need.
Record seating areas, presentation sources and microphone needs for the agreed event types.
Review sightlines, equipment access and cable pathways with the responsible building teams.
Check agreed coverage and operating modes, then document presets and train the nominated operators.
Rigging, structural checks and any emergency voice-alarm design require the appropriate appointed specialists.
Discuss the scope with usUnderstand
Read the adjacent technical page before choosing equipment. It may change the wiring, network or control method that belongs in the brief.
The first row and last row need to understand the same presenter. That requires suitable loudspeaker coverage, controlled reflections, microphone discipline and enough gain before feedback, not just more amplifier power.
Plans mark seated and standing listener areas, presentation positions, camera views and obstructed sightlines. Audio coverage and display calculations use those areas rather than the room perimeter.
AVIXA publishes methods for audio coverage, image size, contrast and verification. The project states which method is being used.

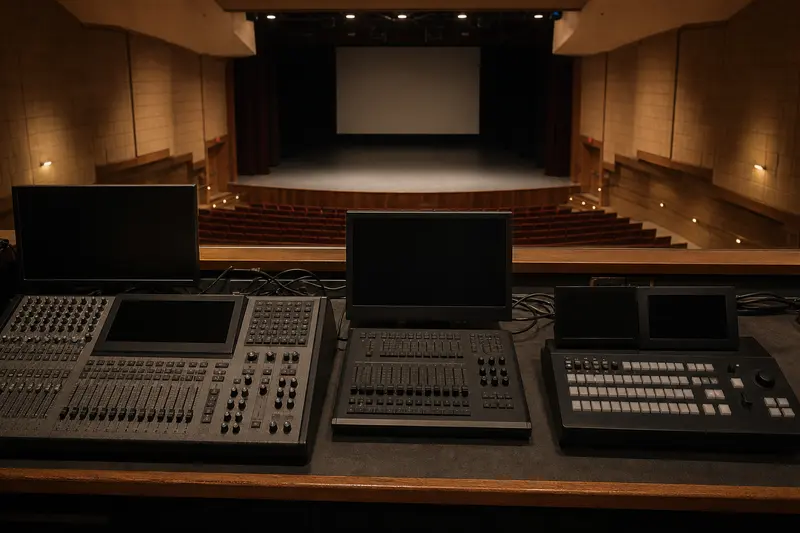

Routine modes should be accessible without exposing every processor setting. Advanced controls, patching and fault information remain available to trained staff with appropriate permissions.
A labelled fallback for a basic speech event is valuable. Events have a habit of starting while one control panel is updating.
Loudspeaker directivity, mounting, delay, level and room response affect seat-to-seat consistency. The design distinguishes early-arriving sound from reverberant energy and background noise.

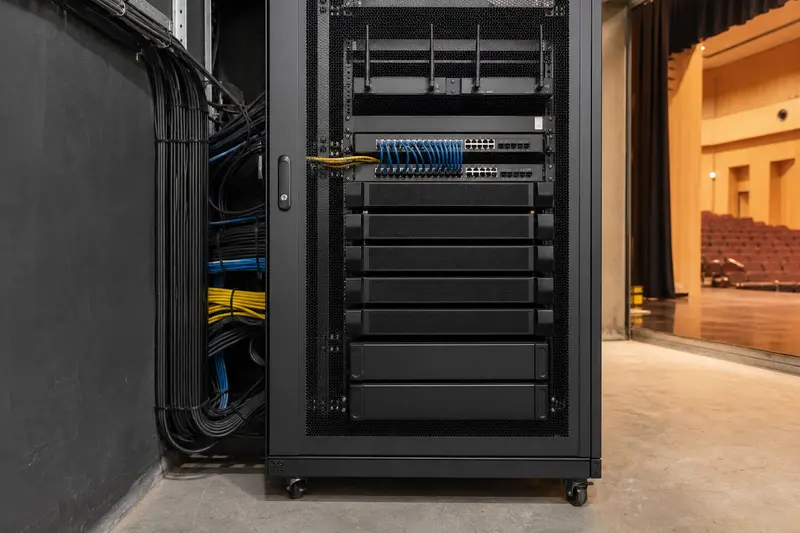

Network transport can help routing and expansion across rooms. It also requires bandwidth, switch configuration, clocking or multicast design and a named owner for the AV network.
Source switching, microphones, playback, display, coverage, control modes, shutdown and restart are tested. Results and unresolved limitations are recorded before the first public event.
Cost is shaped by audience size, speech coverage, display size and brightness, source formats, microphone count, stage connectivity, recording, conferencing, network transport, rigging and acoustic work. Portable production can be the better alternative for venues with rare but highly variable events. A fixed installed system suits repeat formats when trained staff need fast, consistent setup.
Coordinate structural loads, power, data, cable containment and acoustic decisions early, then test representative equipment paths before finishes close. Commissioning includes microphone gain structure, coverage, source switching, video visibility, control presets, shutdown and restart with operators present. Keep labelled spare cables and agreed critical spares, plus configuration backups. If the control panel or AV network fails, a documented basic speech path can preserve a simple event, but its exact capability must be designed and witnessed.
| Use | Priority | Design check |
|---|---|---|
| Speech and lectures | Intelligibility and microphone workflow | Coverage and gain-before-feedback test |
| Film and programme | Image, bandwidth and dynamic range | Source-to-screen and playback verification |
| Hybrid event | Camera, conferencing and echo control | Far-end and near-end test |
Evaluate
Bring the floor plan, reflected ceiling plan or equipment schedule. We can mark assumptions, interfaces and unresolved choices before procurement.
Independent learning
These optional references are published by the organisation named below. They are linked rather than embedded, so the page does not load a video player or start playback.
A practical lesson on selecting sound-system levels instead of treating maximum loudness as the design target. Opens on YouTube in a new tab.
Written by: SmartR Spaces
Technical review: M&M Smarter Automation LLP
Content updated:
Next step
A useful proposal starts with the property, expected behaviour and handover standard. Product names come after those decisions.
