Commercial audio visual systems is the focus of this guide. The room sets the brief. AV performance comes from the room, the signal path and the commissioning record, not one expensive component. This hub separates cinema, auditorium, distributed audio, outdoor sound, acoustic work and public address by the job each system must do.
Quick answer
The room changes performance. An audio-video system carries sources through processing and distribution to displays, amplifiers and loudspeakers; design begins with audience position, content, coverage, picture size, noise and control needs. Equipment is selected after those requirements are measurable.
Understand
Read the adjacent technical page before choosing equipment. It may change the wiring, network or control method that belongs in the brief.
The source is what you play, the processor decides how it is handled, and the output turns it into light or sound. The room changes both. A bright wall can flatten a projected image; a hard ceiling can blur speech even when the loudspeaker is excellent.
Start with the audience. Record seating, source formats, display task, listening area, background noise, control workflow, network dependency and rack environment, then assign an agreed measurement method wherever a relevant performance standard applies.
The rack needs a home. Cable routes, power, cooling and service access are part of the system, not builder details to discover after the equipment arrives on site.
The test follows the room. AVIXA publishes standards covering areas such as system verification, image contrast, display size, audio coverage and documentation, but the applicable method still depends on the agreed scope.
Commissioning preserves the evidence. It records settings and measured results because a demonstration clip, though useful, cannot substitute for repeatable tests against the written performance requirements.

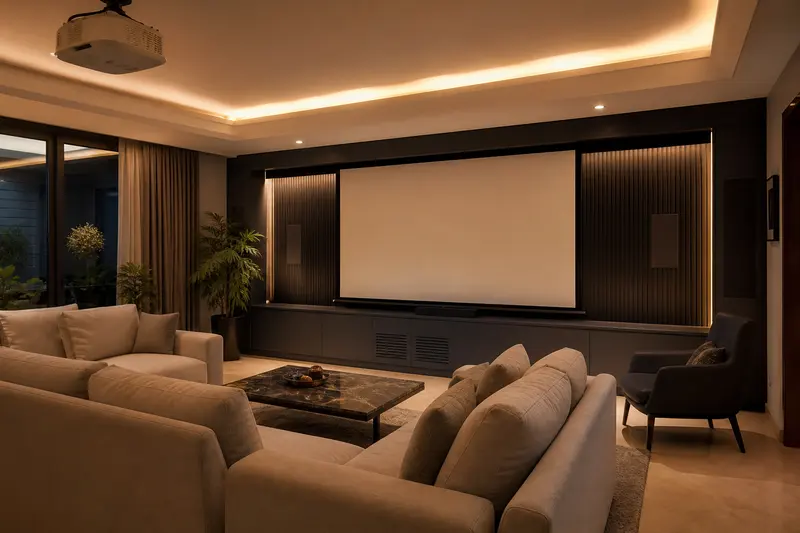

Home theatre covers residential cinema. Commercial AV handles auditoriums and presentation rooms; multi-room and outdoor pages deal with distributed listening; acoustic treatment and PA pages address room response and speech delivery.
Network ownership must be explicit. Control, streaming and AV-over-IP can share structured infrastructure when capacity, multicast and timing are designed, with Audinate documenting relevant Dante transport and switch considerations for networked media.
Names must stay consistent. The record includes signal flow, cable labels, rack layout, network settings, presets, licences, test results and user instructions, with source and destination names matching the labels a person sees in the room.
Price follows the brief. Room count, audience size, acoustic work, source formats, display and loudspeaker choices, cable routes, control, network transport and commissioning determine cost, while portable equipment or a simpler television-and-speaker setup may be the more honest alternative for occasional use. The failure plan should identify the local shutdown and basic operating path that was actually tested for loss of a controller, source or AV network.
| Primary need | Start with | Measure first |
|---|---|---|
| Films in one room | Home theatre | Seating, room geometry and light |
| Presentations or auditorium events | Commercial AV | Audience, content and speech coverage |
| Music across zones | Multi-room or outdoor audio | Zone use, cabling and sound boundaries |
Evaluate
Bring the floor plan, reflected ceiling plan or equipment schedule. We can mark assumptions, interfaces and unresolved choices before procurement.
