Home theatre design starts with where you will sit and what the room can accommodate. We plan the screen and sound together, then work through installation and calibration. A dedicated cinema and a family living room need different answers.
Quick answer
A Dolby Atmos home theatre adds height information to the conventional ear-level speaker layout. Numbers such as 5.1.2 describe ear-level channels, subwoofers and height channels. The correct layout follows the room and seating, then equipment and calibration follow that geometry.
Project management consultancy (PMC)
Home theatre PMC can keep the AV design aligned with interiors and electrical work. Reserve the space for speakers and equipment before the decorative details are final.
Spend first on the room layout and a balanced system. More speakers are worthwhile only when the space supports them.
Agree seating, screen size and speaker positions against the measured room.

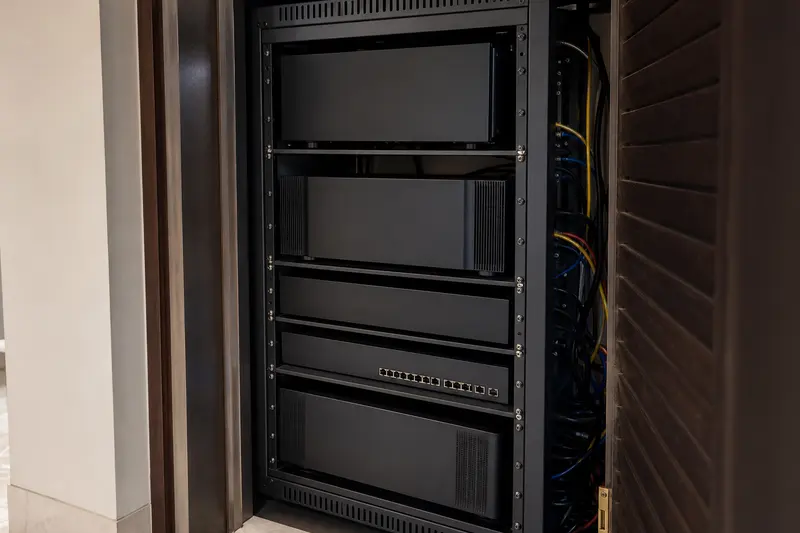

Review cable routes, acoustic treatment depth and rack ventilation with the fit-out team.
Witness picture and audio checks using agreed sources; collect settings and the control guide.
An equipment layout does not guarantee sound isolation. Construction-led soundproofing needs a separately defined scope.
Discuss the scope with usUnderstand
Read the adjacent technical page before choosing equipment. It may change the wiring, network or control method that belongs in the brief.
A bigger speaker list does not rescue poor placement. Dialogue comes from the centre channel, bass interacts with room boundaries, and height effects need suitable overhead or enabled speakers. Draw the listening positions first.

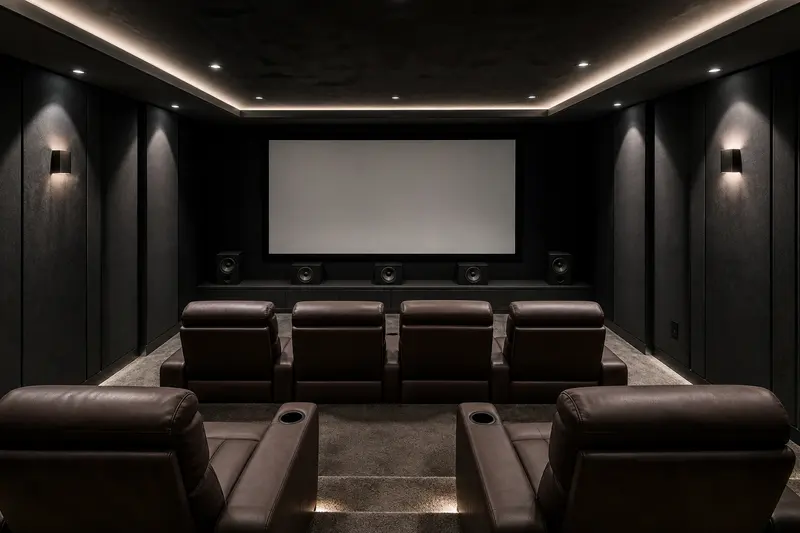

Confirm seat rows, sightlines, screen type and size, speaker locations, projector throw if used, equipment rack, power, cooling and cable paths. Room dimensions affect low-frequency behaviour and treatment choices.
Dolby publishes layout guidance for common Atmos configurations. Final angles and mounting details are checked against the current guide and selected speaker data.
Verify every channel, polarity, routing, format and control command. Calibration then sets levels, distances, crossover behaviour and room-correction parameters against the chosen design.
Listening checks use familiar dialogue, music and dynamic programme material. A loud trailer can hide more than it reveals.

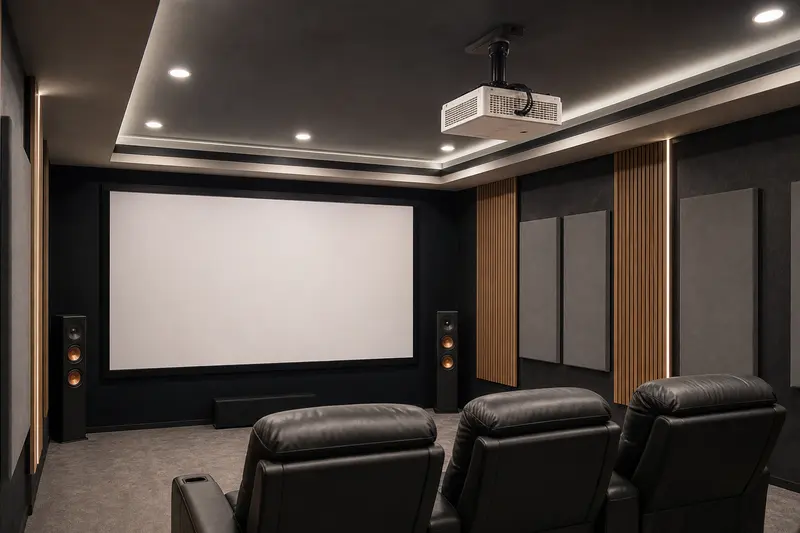

A TV handles ambient light differently and is easier to package. Projection allows larger images but depends on throw, screen, light control and the required brightness at the screen.
The answer depends on room modes, seats and performance target. More than one subwoofer can help seat-to-seat consistency when placement and calibration are designed; quantity alone does not guarantee even bass.
Treatment manages reflections and decay inside the room. Isolation limits transmission between rooms. They use different assemblies and should not be sold as interchangeable foam panels.
Budget follows room construction, seating count, screen or display, projector requirements, speaker and subwoofer layout, amplification, acoustic treatment, isolation, lighting, ventilation and control. A well-planned television room can outperform a compromised dedicated cinema for many households. Soundbars or compact systems are reasonable alternatives where construction, speaker placement or listening level must remain modest.
Complete the room and sightline design before wiring and interior fabrication. First-fix inspection is followed by enclosure checks, equipment installation, acoustic finishing, video setup, audio calibration and a session using the owner's normal sources. Filters and projector light paths need routine cleaning, while firmware and backup settings need controlled updates. If the control processor or network is unavailable, document how to select a source, set a safe volume and shut the system down from local controls.
The room comes first. Home theatre design coordinates seats, sightlines, projector and screen geometry, AV receiver or amplifier capacity, surround sound and Dolby Atmos speaker positions, bass behaviour, acoustic treatment, cooling and control before installation fixes equipment and cable routes.
| Condition | TV | Projection |
|---|---|---|
| Some ambient light remains | Often easier to manage | Needs careful brightness and screen review |
| Very large image wanted | Size may constrain budget or access | Often the practical route |
| Equipment simplicity matters | Fewer optical variables | Adds projector, lens and screen coordination |
Evaluate
Bring the floor plan, reflected ceiling plan or equipment schedule. We can mark assumptions, interfaces and unresolved choices before procurement.
Independent learning
These optional references are published by the organisation named below. They are linked rather than embedded, so the page does not load a video player or start playback.
Dolby Institute introduces object-based audio and the relationship between a mix, a renderer and the available loudspeakers. Opens on YouTube in a new tab.
