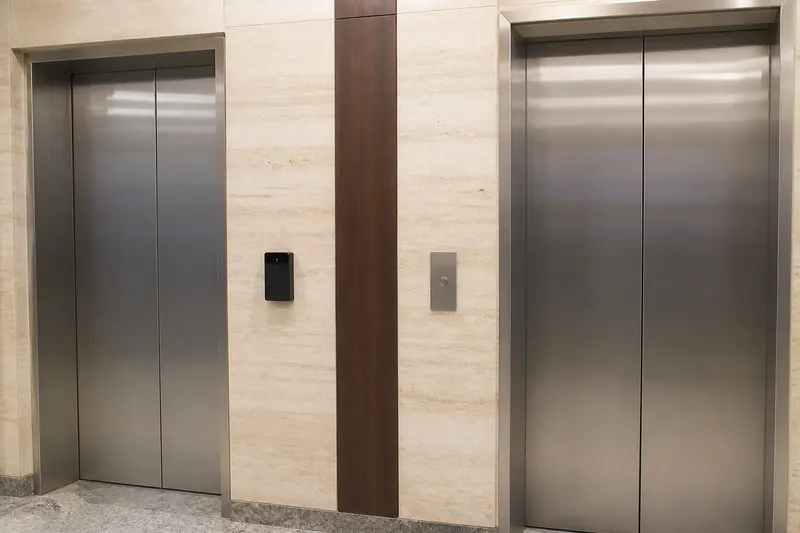

Office lift lobby with separate access reader and conventional call control.
Concept illustration: Office lift lobby with separate access reader and conventional call control.
Access Control and Entrance Automation

Floor access with clear permissions

Lift access control restricts floor selection through an agreed interface with the lift system. We help plan who may reach each floor and how visitors are handled. The lift contractor must be involved before any connection is promised.

Quick answer

What is lift access control?

Lift access control limits which floors a credential may select or which destination a user may request. It must interface through a method approved by the lift manufacturer or maintainer. Fire service, emergency recall, rescue and normal lift safety logic stay under the lift system.

Project management consultancy (PMC)

Who coordinates lift access control PMC?

Lift access control PMC can help the access vendor and lift contractor agree a supported connection. Responsibilities must be written down before work reaches the controller.

Use floor restrictions where they support the building operation. Avoid making ordinary visitor access harder than it needs to be.

  1. Define floor permissions

    List user groups, visitor arrangements and the floors each may select.

  2. Confirm the lift interface

    Obtain the lift contractor's supported connection details and work boundaries.

  3. Witness the agreed modes

    Test permitted floor selection and recovery with the lift contractor present.

No modification to lift safety controls is included. The lift contractor and relevant responsible authorities retain approval of lift-system work.

Discuss the scope with us

Understand

Learn before you shortlist

Review architecture, dependencies, failure behaviour and limits before comparing products.

Read the lift access control guide

How to think about it

The access controller may say which floors a person is allowed to visit. It must never pretend to be the lift controller. One system handles permissions; the other handles motion and passenger safety. The boundary between them should be drawn and signed off by both parties.

What should we decide before ordering?

An access system is a chain of decisions

For lift access control, relay floor enable often calls for existing conventional lift with approved interface. The reader captures it, a controller checks the rule, a lock or motor acts, and the system records what happened. Door hardware, fire strategy, power supplies, network links and user administration all affect that chain. The project timeline places the relay floor enable survey before equipment selection, followed by installation and a witnessed output count and lift-panel wiring check. The written decision is output count and lift-panel wiring; the related two common interface patterns review then checks that choice against the site's actual users, opening or camera view, and failure response.

For lift access control, destination integration often calls for supported destination-control platform. We document free egress, emergency release, manual recovery and the behaviour of each controlled opening when mains power, a controller or a network path is lost. The written decision is vendor API and licensing; the related visitors and emergencies expose weak plans review then checks that choice against the site's actual users, opening or camera view, and failure response.

Credentials need a lifecycle, not a one-time setup

For lift access control, visitor release often calls for residential or managed office. The useful question is who can issue, suspend, replace and audit them. Shared PINs are cheap but hard to attribute. The written decision is time limit and host approval; the related two common interface patterns review then checks that choice against the site's actual users, opening or camera view, and failure response.

For lift access control, unrestricted operation often calls for simple building or emergency state. The written decision is less access granularity; the related visitors and emergencies expose weak plans review then checks that choice against the site's actual users, opening or camera view, and failure response.

The opening decides the hardware

For lift access control, relay floor enable often calls for existing conventional lift with approved interface. We survey the physical opening first, then check duty cycle, holding force, sensor positions, weather exposure, drainage, cable routes and service access. Maintenance revisits output count and lift-panel wiring, user access and the physical condition that could change this result after handover. The written decision is output count and lift-panel wiring; the related two common interface patterns review then checks that choice against the site's actual users, opening or camera view, and failure response.

For lift access control, destination integration often calls for supported destination-control platform. Intercom, CCTV, lift control, attendance and visitor management can share events where supported, but each interface is checked by model and protocol. A simpler alternative is retained whenever the site can meet the same need with a staffed, mechanical or non-analytic process. The written decision is vendor API and licensing; the related visitors and emergencies expose weak plans review then checks that choice against the site's actual users, opening or camera view, and failure response.

What does the work involve?

Two common interface patterns

Conventional systems enable selected car-call buttons through isolated outputs. Destination-control lifts can accept identity earlier and assign a car through a supported interface. The exact wiring, voltage and software path comes from the lift vendor, not from guesswork at the panel.

Visitors and emergencies expose weak plans

Residents may use cards while visitors receive an intercom release, QR credential or concierge approval. Lost cards, deliveries and after-hours contractors need rules. During fire or rescue operation, life-safety behaviour overrides ordinary floor restrictions as defined by the lift authority.

What affects lift-access cost and timing?

The lift interface is decisive. Cost follows floor count, credential rules, controller interfaces, travelling cables or approved gateways, vendor attendance and testing, while the timeline depends on early lift-contractor approval before installation and floor-by-floor commissioning.

Where can biometric lift access be used?

Identity does not control motion. Biometric lift access can submit a permitted-user decision where the lift vendor supports the interface, but floor access, visitor handling, fallback, fire operation and all movement or rescue functions remain within the approved lift-control design.

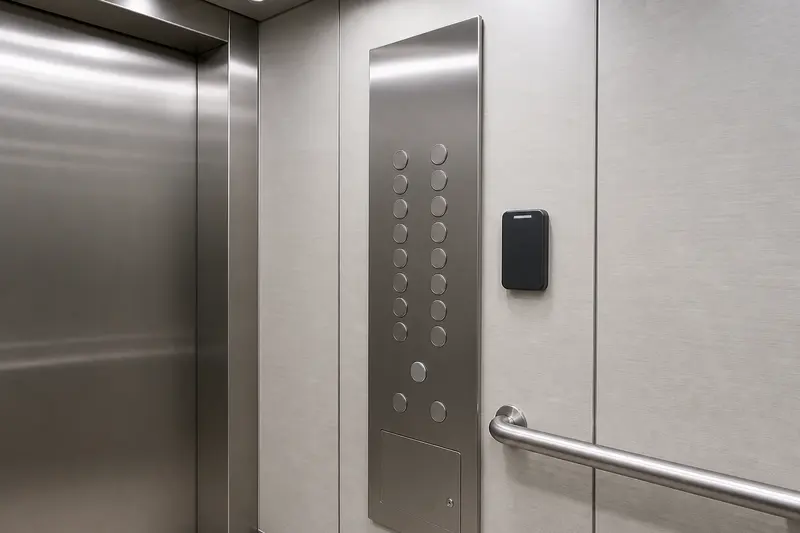

In-car reader installed separately from a blank conventional button panel.
Concept illustration: In-car reader installed separately from a blank conventional button panel.

How the system works

Lift access control: credential, policy, output and event-record decision path
The diagram separates credential capture, controller policy and the physical output. It also shows why an event record is not the same thing as a safe exit path.
Lift access control: presence detection, travel limits, stop logic and manual recovery
A command may move an entrance only while presence detection, travel limits and stop logic agree. Manual recovery remains available for a trained person.

Comparison and decision tables

Lift access control: practical selection guide
Option or situationGood fitQuestion to settle
Relay floor enableExisting conventional lift with approved interfaceOutput count and lift-panel wiring
Destination integrationSupported destination-control platformVendor API and licensing
Visitor releaseResidential or managed officeTime limit and host approval
Unrestricted operationSimple building or emergency stateLess access granularity

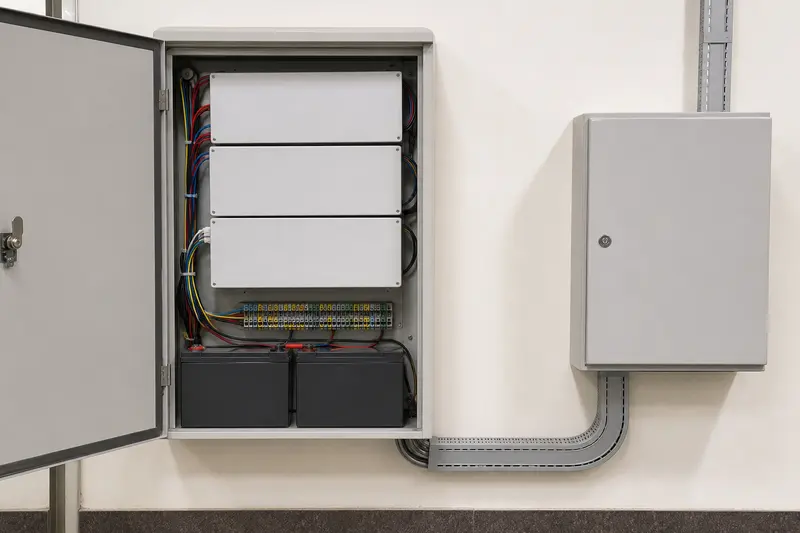

Blank-covered low-voltage access cabinet beside closed elevator interface enclosure.
Concept illustration: Blank-covered low-voltage access cabinet beside closed elevator interface enclosure.

Evaluate

Turn requirements into a plan

List the opening or camera views, users, traffic, construction stage and current infrastructure so the survey can test the right constraints.

Prepare a site survey
