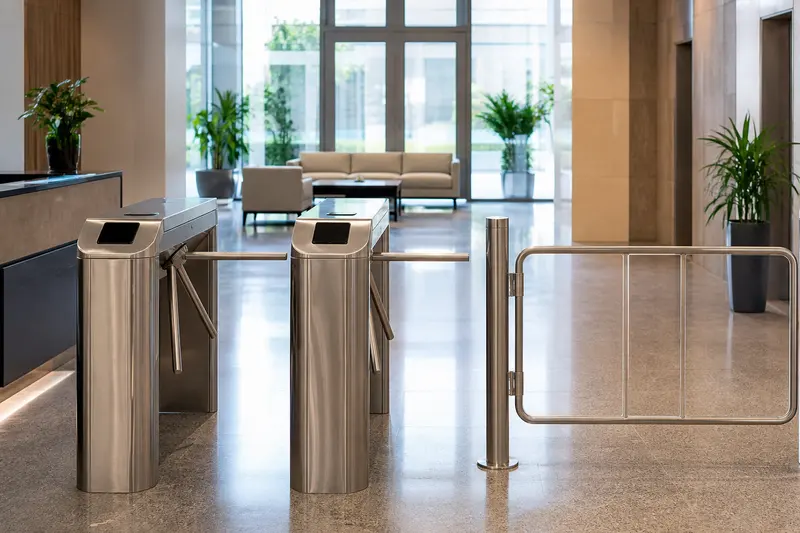

Tripod office lanes beside a separate accessible swing gate.
Concept illustration: Tripod office lanes beside a separate accessible swing gate.
Access Control and Entrance Automation

An entrance that knows how people move

Turnstile installation needs a clear picture of how staff and visitors arrive. We plan the lanes and credential checks around that flow, with accessible entry considered from the start. The narrowest route through reception should not set the whole experience.

Quick answer

What are turnstiles used for?

Turnstiles control pedestrian passage after an access decision. Tripod units meter one person at a time; other formats suit different entrances. The layout needs an accessible route and an agreed emergency mode. A standard tripod lane cannot provide wheelchair access, so we plan the wider passage alongside it.

Project management consultancy (PMC)

What does turnstile PMC need to coordinate?

Turnstile PMC can connect reception layout and access-control design with the building requirements. Agree the alternative route before fixing the lane arrangement.

A reception desk and a controlled door may be enough for a small site. Turnstiles should answer a real circulation need.

  1. Plan the arrival flow

    Map staff, visitor and accessible routes with the property team.

  2. Review the interfaces

    Coordinate floor fixings, power and reader integration with the appointed contractors.

  3. Test daily use

    Witness permissions and the approved emergency behaviour; train operators on visitor handling and recovery.

Emergency egress and accessibility arrangements need review by the responsible building professionals; the turnstile is not the whole escape design.

Discuss the scope with us

Understand

Learn before you shortlist

Review architecture, dependencies, failure behaviour and limits before comparing products.

Read the turnstiles guide

How to think about it

A reader says yes; the turnstile allows one movement. That physical counting is why it controls tailgating better than an ordinary unlocked door. It also creates a bottleneck. Bags, wheelchairs, deliveries and a sudden evacuation do not fit neatly through three rotating arms.

What should we decide before ordering?

An access system is a chain of decisions

For turnstiles, tripod often calls for staff entrances and moderate flow. The reader captures it, a controller checks the rule, a lock or motor acts, and the system records what happened. Door hardware, fire strategy, power supplies, network links and user administration all affect that chain. The project timeline places the tripod survey before equipment selection, followed by installation and a witnessed not accessible; visible mechanical barrier check. The written decision is not accessible; visible mechanical barrier; the related pick the lane by behaviour review then checks that choice against the site's actual users, opening or camera view, and failure response.

For turnstiles, flap barrier often calls for indoor reception with faster flow. We document free egress, emergency release, manual recovery and the behaviour of each controlled opening when mains power, a controller or a network path is lost. The written decision is sensor tuning and wider cabinet; the related calculate usable throughput review then checks that choice against the site's actual users, opening or camera view, and failure response.

Credentials need a lifecycle, not a one-time setup

For turnstiles, speed gate often calls for premium office lobby. The useful question is who can issue, suspend, replace and audit them. Shared PINs are cheap but hard to attribute. The written decision is higher cost and glass safety; the related pick the lane by behaviour review then checks that choice against the site's actual users, opening or camera view, and failure response.

For turnstiles, full height often calls for hard outdoor perimeter. The written decision is large footprint and escape planning; the related calculate usable throughput review then checks that choice against the site's actual users, opening or camera view, and failure response.

The opening decides the hardware

For turnstiles, tripod often calls for staff entrances and moderate flow. We survey the physical opening first, then check duty cycle, holding force, sensor positions, weather exposure, drainage, cable routes and service access. Maintenance revisits not accessible; visible mechanical barrier, user access and the physical condition that could change this result after handover. The written decision is not accessible; visible mechanical barrier; the related pick the lane by behaviour review then checks that choice against the site's actual users, opening or camera view, and failure response.

For turnstiles, flap barrier often calls for indoor reception with faster flow. Intercom, CCTV, lift control, attendance and visitor management can share events where supported, but each interface is checked by model and protocol. A simpler alternative is retained whenever the site can meet the same need with a staffed, mechanical or non-analytic process. The written decision is sensor tuning and wider cabinet; the related calculate usable throughput review then checks that choice against the site's actual users, opening or camera view, and failure response.

What does the work involve?

Pick the lane by behaviour

Tripods are compact and deliberate. Flap barriers and speed gates feel more open and can support faster office flows, although sensor tuning and lane discipline matter. Full-height units provide a harder perimeter for industrial or outdoor sites and demand careful emergency planning.

Calculate usable throughput

Brochure figures assume prepared users and clean credential reads. Real queues include visitors, rejected cards and people searching for badges. We observe peak arrivals, provide an accessible lane and test anti-passback or occupancy rules without trapping users.

How is a turnstile project sequenced?

Flow evidence comes first. The timeline covers pedestrian counts, escape and accessible-route review, floor and power coordination, reader integration, installation, direction and anti-tailgating tests, then operator training before the lane enters service.

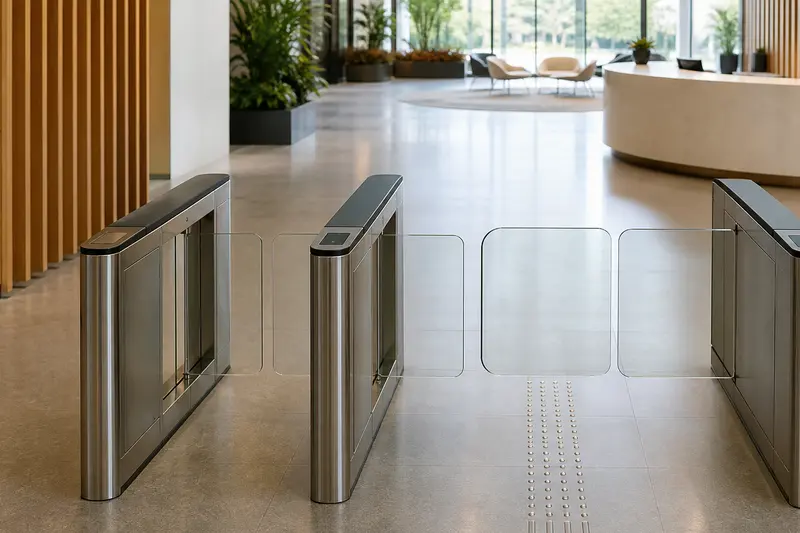

Optical speed gates with tactile-guided wider accessible lane.
Concept illustration: Optical speed gates with tactile-guided wider accessible lane.

How the system works

Turnstiles: credential, policy, output and event-record decision path
The diagram separates credential capture, controller policy and the physical output. It also shows why an event record is not the same thing as a safe exit path.
Turnstiles: presence detection, travel limits, stop logic and manual recovery
A command may move an entrance only while presence detection, travel limits and stop logic agree. Manual recovery remains available for a trained person.

Comparison and decision tables

Turnstiles: practical selection guide
Option or situationGood fitQuestion to settle
TripodStaff entrances and moderate flowNot accessible; visible mechanical barrier
Flap barrierIndoor reception with faster flowSensor tuning and wider cabinet
Speed gatePremium office lobbyHigher cost and glass safety
Full heightHard outdoor perimeterLarge footprint and escape planning

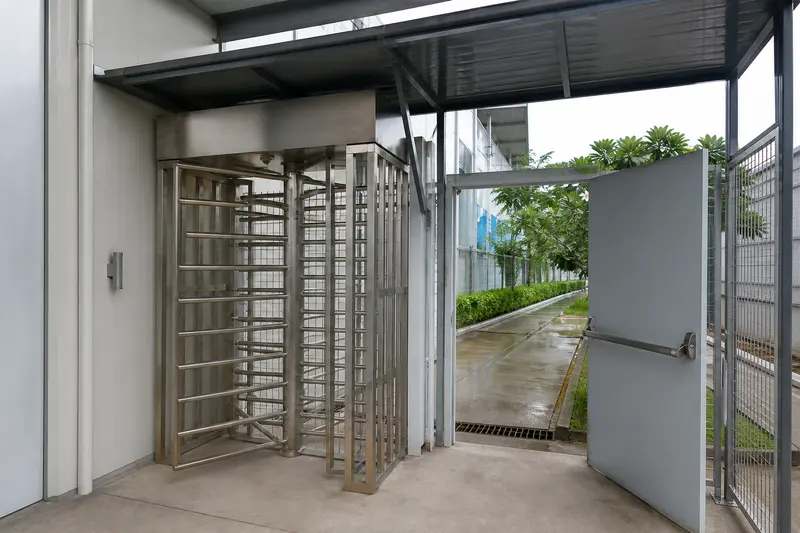

Industrial full-height rotor beside a separate outward emergency exit.
Concept illustration: Industrial full-height rotor beside a separate outward emergency exit.

Evaluate

Turn requirements into a plan

List the opening or camera views, users, traffic, construction stage and current infrastructure so the survey can test the right constraints.

Prepare a site survey
