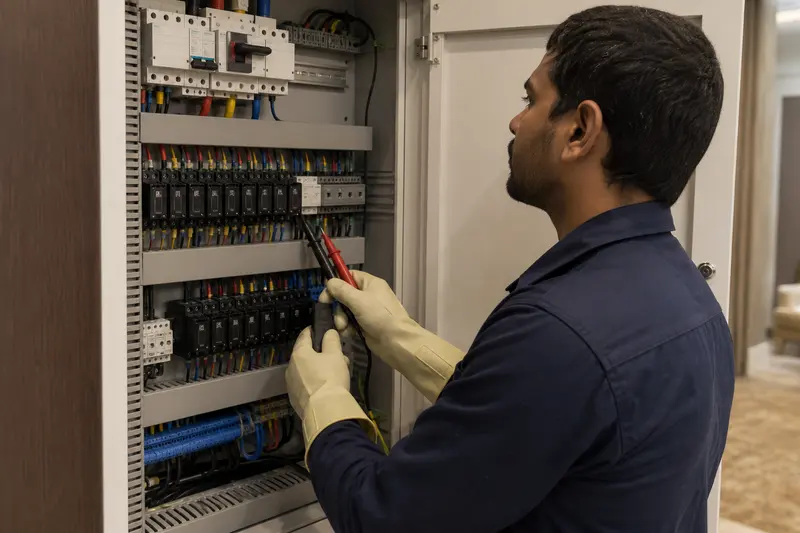

Electrician verifies a protected central relay panel under isolation.
This primary view makes the visible room or equipment interfaces concrete while planning smart switching; final equipment and placement follow the site survey.
Automation

Smart Switching

Smart switching for homes is the focus of this guide. Every button needs one clear job. Smart switching adds controlled relays or electronic outputs to ordinary electrical loads; It sounds basic, which is why load type, inrush and manual recovery are often overlooked.

Quick answer

What is smart switching?

Movement needs clear limits. A smart switch sends a command to a relay or electronic output that controls a circuit; the device must be rated for the actual load, including motor or LED-driver inrush. App compatibility matters later; electrical suitability comes first.

Understand

Check the dependencies around smart switching

Read the adjacent technical page before choosing equipment. It may change the wiring, network or control method that belongs in the brief.

Read the related guide

How to think about it

Loads decide compatibility. The wall plate is an instruction surface, not necessarily the part carrying the load; in a centralised system, a key talks to a panel relay. In a retrofit module, the relay may sit behind the existing switch or near the fitting.

Shared technical guidance

Which loads need special attention?

Requirements come first. Fans, pumps, contactors and LED drivers can draw or interrupt current differently from a plain resistive lamp; the manufacturer rating and switching category need to match the connected equipment.

Requirements come first. Controlled sockets are labelled because someone will eventually plug in a heater or iron; a vague app icon is not enough.

What should work without the app?

Failure needs a tested path. Local keys should operate routine circuits even when remote access is unavailable, subject to the architecture; manual override at a panel may also be appropriate for critical loads.

Records preserve supportability. The handover identifies every controlled circuit and the method for returning it to ordinary operation. That record lets a future technician isolate a fault, identify the load and restore the agreed local control without reverse-engineering the panel on site.

Service-specific guidance

Centralised panel or in-wall module?

Requirements come first. Central panels simplify access and keep relays together, but require planned cabling and panel space; in-wall modules can suit retrofits, provided the box has room, ventilation and the conductors the device requires.

How are two-way locations handled?

Loads decide compatibility. A conventional two-way circuit and a bus key use different wiring logic; existing stair and corridor switching is surveyed before devices are chosen, otherwise a harmless-looking retrofit can create confusing behaviour.

Why do smart relays sometimes weld closed?

Commissioning needs evidence. High inrush or an unsuitable load can damage contacts even when steady-state wattage looks modest; use published ratings, suitable contactors where required and a commissioning test under the real load.

What should be allowed for beyond the visible keypad?

Scope sets the budget. The price is shaped by the number and type of loads, neutral and box availability, relay or dimmer channels, keypad finish, engraving, panel work and integration with scenes. Conventional switches remain the simplest alternative for isolated loads. Smart relays behind familiar switches can reduce interface change, while premium keypads can consolidate many functions but require careful labels and programming.

Commissioning needs evidence. For a retrofit, survey box depth, conductor arrangement and load compatibility before ordering. For new work, freeze keypad locations and back-box details before wall finishes. Commission every press, hold, status indicator and multiway condition, then test recovery after power interruption. Owners need an editable button schedule and spare-device strategy. If the hub or internet fails, the specified local switch behavior must be known; some devices remain directly operable, while others depend on a controller path.

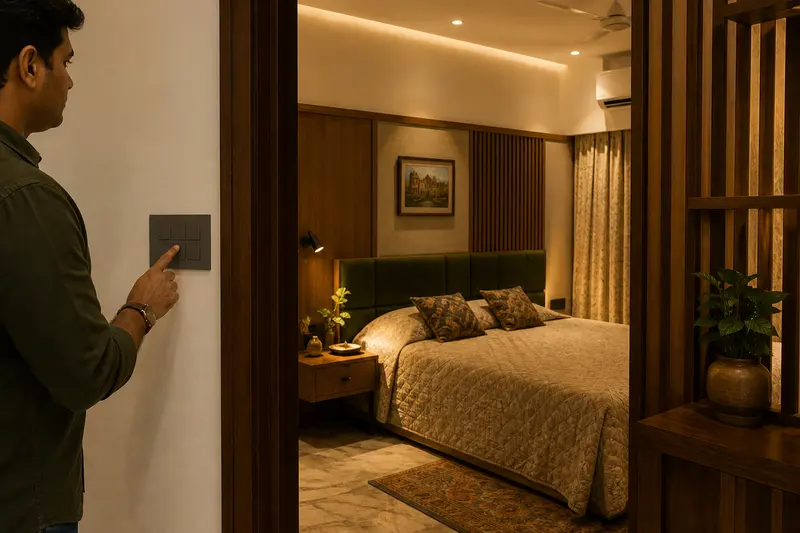

A tactile wall keypad provides manual control of several bedroom lighting circuits.
This related view exposes coordination points beyond the first device while planning smart switching; final equipment and placement follow the site survey.

How the system works

Central panel and in-wall switching compared: Panel relay, Home-run circuit, Bus key, In-wall relay, Existing circuit
Acceptance should verify existing circuit explicitly before the system is handed over.
Command path and electrical load path: Control message, Relay coil or logic, Relay contact, Supply, Load
Acceptance should verify load explicitly before the system is handed over.

Comparison and decision tables

Smart switching equipment questions
LoadIssue to checkPossible control element
LED lightingDriver inrush and minimum loadRated relay or compatible dimmer
Fan or pumpMotor switching categoryMotor-rated relay or contactor
General socketUnknown future applianceLabelled, suitably rated circuit or leave conventional

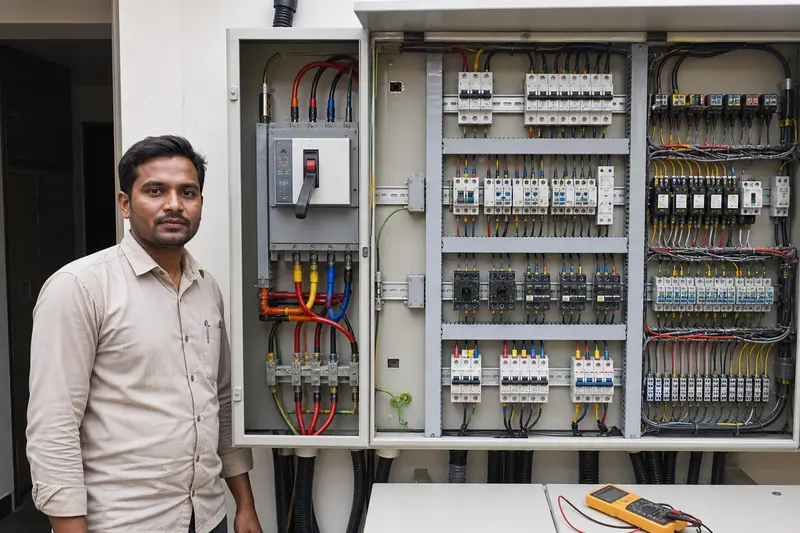

Large central switching panel shows protected power distribution and relay banks.
This third view keeps commissioning access and future serviceability in scope while planning smart switching; final equipment and placement follow the site survey.

Evaluate

Turn the smart switching brief into drawings

Bring the floor plan, reflected ceiling plan or equipment schedule. We can mark assumptions, interfaces and unresolved choices before procurement.

Request a design review
