KNX Automation

What does ETS contain?

Requirements come first. ETS holds the project topology, device product data, physical addresses, parameters and group-object links; KNX Association describes it as the manufacturer-independent tool for planning, configuring and commissioning KNX installations.

Records preserve supportability. The final archive and relevant passwords belong in the handover. Without them, even a minor change becomes an archaeology exercise. The archive should include the commissioned project, device data and address records needed to replace or reprogram supported equipment later on site.

How is the bus divided into lines and areas?

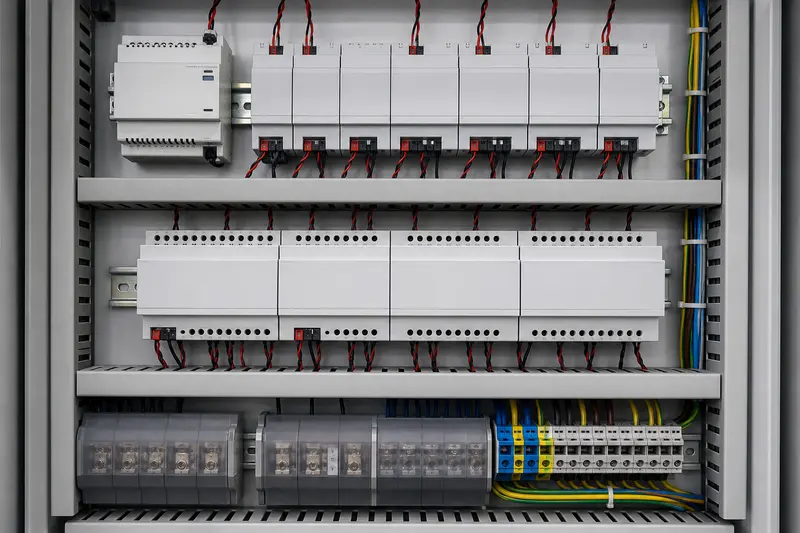

The network is part of it. Topology depends on device count, traffic, physical layout and power-supply design; line and area couplers provide structure and filtering; IP interfaces or routers connect selected parts to Ethernet.

Records preserve supportability. The drawing records supply location, line segments and device addresses; rules are checked against current KNX documentation and selected product data.

What do sensors and actuators exchange?

Loads decide compatibility. A sensor exposes communication objects such as switching, dimming or measured values; eTS links those objects to group addresses read by one or more actuators or controllers.

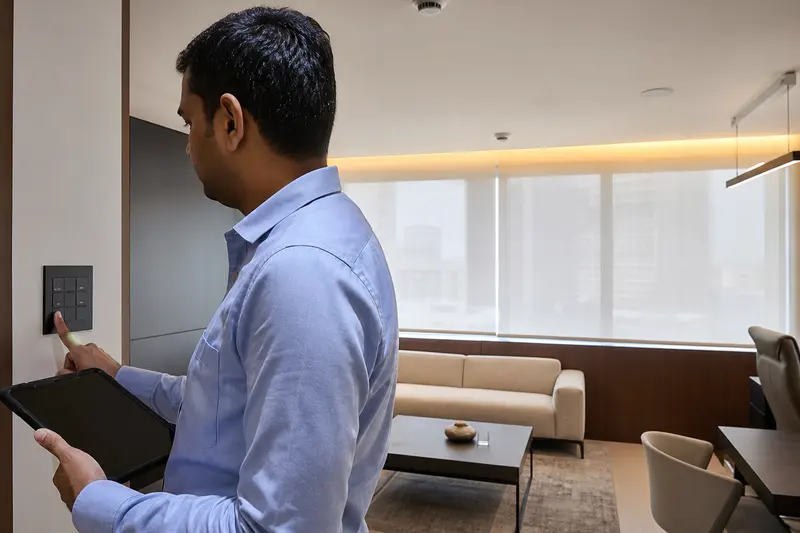

How is KNX commissioned?

Requirements come first. Devices receive addresses and parameters, functions are tested, bus traffic is inspected where needed, and secure settings are verified for the chosen products. The result is backed up after witnessed changes.

When is a gateway justified?

Mechanical safeties stay authoritative. Gateways connect KNX to systems such as DALI, HVAC or a visualisation platform. Each adds a mapping table and failure boundary, so it should exist for a defined function rather than to collect logos.

What makes a KNX installation economical and maintainable?

Scope sets the budget. Budget depends on points, actuator channels, bus segments, power supplies, couplers, keypad and sensor choices, panel size, ETS engineering and integrations. KNX can reduce dependence on one product family at the protocol level, but devices, application programs and commissioned project data still require disciplined selection. Conventional controls or a smaller wireless system may suit a limited retrofit with few coordinated functions.

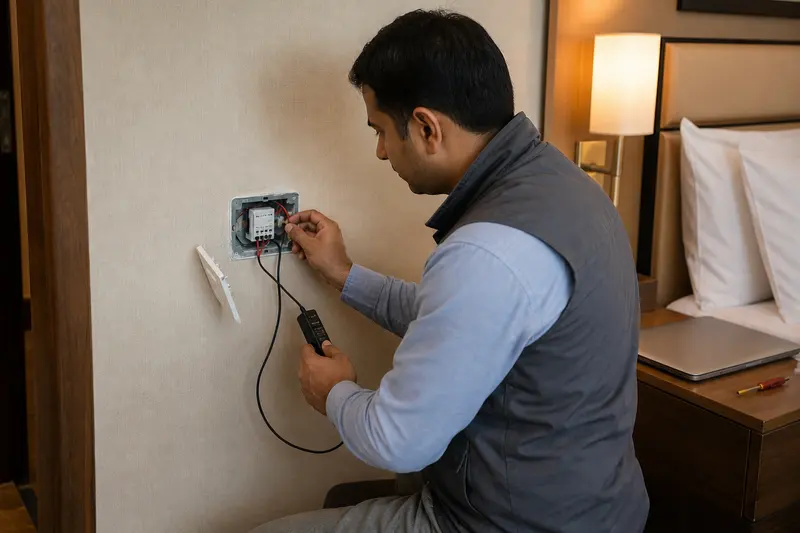

Failure needs a tested path. The delivery sequence covers topology and load schedules, cable and panel inspection, device addressing, application programming, group-object testing, scene tuning and backup export. The owner should receive the ETS project, product databases where permitted, physical and group address schedules, passwords and a change log. Loss of visualization or an IP gateway need not stop bus-level functions designed locally. Loss of a line power supply or actuator affects its segment, so segmentation, spares and fault isolation matter.

Why is KNX considered wired automation?

The bus is deliberate. KNX wired automation normally carries commands and device communication on a dedicated bus while actuators switch or dim the connected loads; topology, power supplies, line limits, panel space and the retained ETS project matter more than treating the word wired as a promise of universal compatibility.
