Motorised curtains and blinds need more than a motor that fits the budget. We look at the opening, fabric weight and access for servicing, then plan the track and controls. The best time is before the pelmet is built.
Quick answer
A motorised curtain or blind needs a motor matched to the mechanism, load and travel, plus power and a control interface. The controller can schedule or group movement, but it cannot correct a bent track, poor bracket spacing or an inaccessible motor.
Project management consultancy (PMC)
Shading automation PMC can bring the curtain supplier and interior team into the same drawing. That helps avoid a finished pocket with no room to remove the motor.
Automate the tall or frequently used openings first. There is no reason to motorise every window just because you can.
Confirm fabric weight, track shape and the direction each curtain or blind should move.
Coordinate brackets, sockets and removable access with the ceiling and joinery team.
Check travel limits and grouped control only after the actual curtains or blinds are fitted.
Manual release and outage behaviour depend on the selected motor; they cannot be assumed for every product.
Discuss the scope with usUnderstand
Read the adjacent technical page before choosing equipment. It may change the wiring, network or control method that belongs in the brief.
The automation command says open, close or move to a position. The motor still has to pull real fabric through real friction. That is why a site measurement and the fabric specification matter more than the remote-control photograph.
Record opening width, drop, stack space, fabric and lining weight, track bends, mounting surface and access side. For roller shades, tube size and pocket clearance also shape the motor choice.

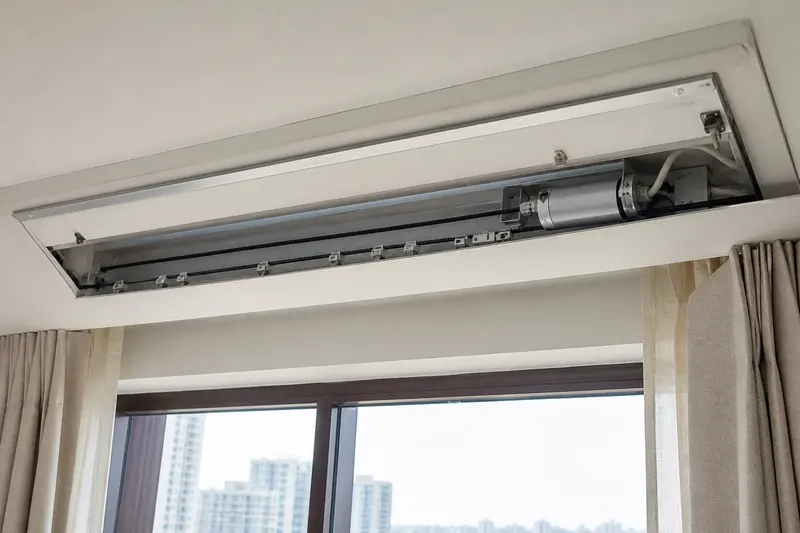

Power and control cable routes are coordinated before pelmets close. A removable access panel is cheap insurance.
Open and close limits prevent overrun. Group commands are staggered where the electrical or control design calls for it, and each shade is tested for obstruction, alignment and repeatability.
Manual escape or service behaviour depends on the selected mechanism. It must be documented, not assumed from another model.
Curtain motors pull carriers along a track; tubular motors rotate a roller; blind drives may lift, tilt or do both. These are different loads and need different mechanical details.
A controller can use time, façade orientation, light data or an approved weather input. Occupant override and safe wind behaviour still need project rules, especially for exterior products.
Misalignment, tight bends, undersized motors and loose mounting can all add noise. The quietest catalogue figure will not survive a poor track installation.
Cost follows opening size, curtain or blind type, fabric weight, motor rating, track bends, pockets, brackets, access panels, power and control interfaces. Manual curtains or independently remote-controlled motors are reasonable alternatives where grouping, schedules and scene integration are unnecessary. Automation adds value when several openings must move together or when high and inaccessible treatments need consistent control.
Survey and fabric decisions must precede motor and bracket selection. Coordinate power, recesses and access before ceilings or pelmets close, then install tracks, set limits, hang the final fabric and commission scenes only after travel is stable. Maintenance includes cleaning tracks, checking fixings and keeping motors reachable. A power or controller outage should leave a documented recovery method; manual override is product-specific and must never be promised without confirming the selected mechanism.
Names affect the mechanism. Motorized curtains and automated drapes normally travel laterally on a track, while motorized blinds and roller shades raise, tilt or roll using different drives, brackets and limit-setting methods; the fabric, weight, opening and service access decide which mechanism is supportable.

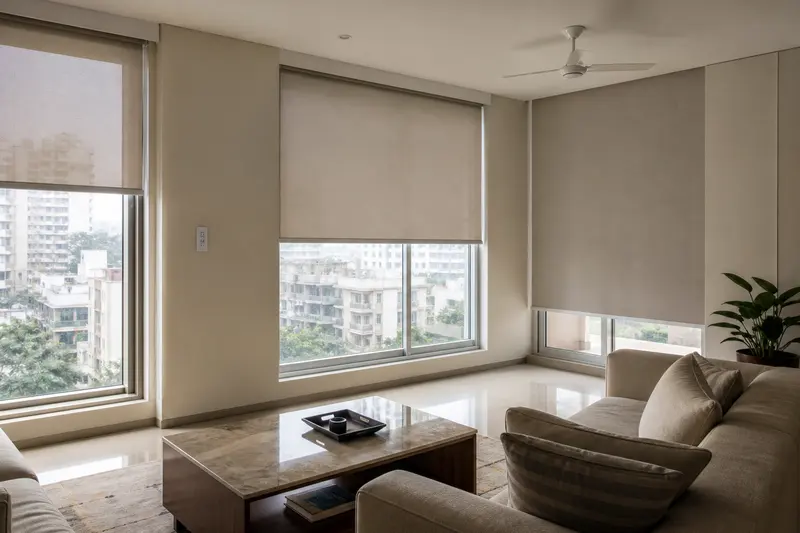

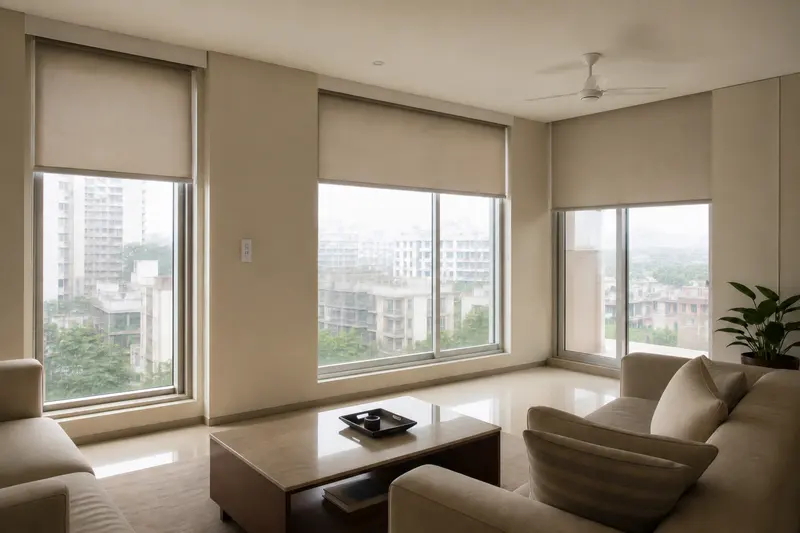

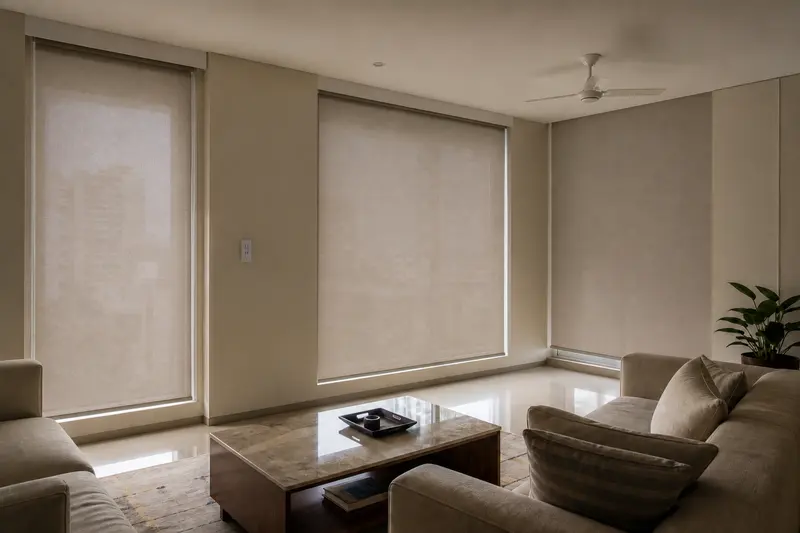

Some days you want the view. At other times, you may want the shades down. These AI-generated views compare positions in the same fictional room; fabric choice and window gaps still need checking in your home.
| Mechanism | Critical measurement | Service question |
|---|---|---|
| Curtain track | Fabric mass, width and bends | Can the motor and carriers be reached? |
| Roller shade | Tube, drop and fabric | Is the pocket removable? |
| Exterior blind | Wind exposure and safe state | Which weather interface is approved? |
Evaluate
Bring the floor plan, reflected ceiling plan or equipment schedule. We can mark assumptions, interfaces and unresolved choices before procurement.
Written by: SmartR Spaces
Technical review: M&M Smarter Automation LLP
Content updated:
Next step
A useful proposal starts with the property, expected behaviour and handover standard. Product names come after those decisions.
